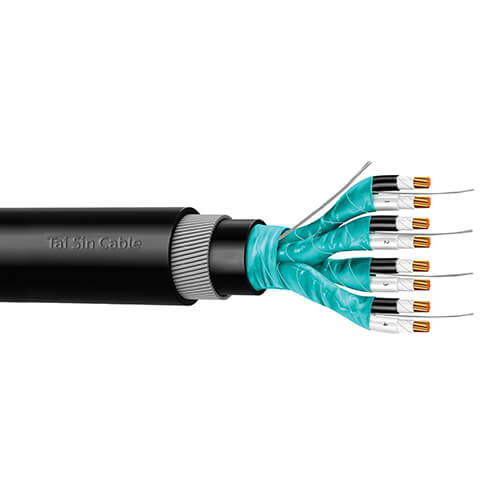

IN-XIOSP, CU / XLPE / IS / OS / PVC / SWA / PVC, PAIRS & TRIADS

XLPE Insulated, Individual Aluminium Foil Screened, Overall Aluminium Foil Screened, PVC Bedded,
Galvanised Steel Wire Armoured, PVC Sheathed Cable
300 / 500V
BS EN50288-7

CONSTRUCTION

Conductor: Plain Annealed Copper, Class 2 Stranded Circular
Insulation: Cross-linked Polyethylene (XLPE) Compound
Insulation Colour:
Pair/s – Black/White with Black numberings
Triad/s – Red/Black/White with Black numberings
Cores Twisted: Cores twisted to form a pair, triad or quad
Wrap Film: Polyester Binder Tape
Individual Screen: Aluminium/Polyester Tape, with a Tinned Copper Drain Wire 0.5mm2 (7/0.3mm) (IS)
Lay Up: Multi-pairs, triads or quads are assembled together in concentric layers to form the cable core
Wrap Film: Polyester Binder Tape
Overall Screen: Aluminium/Polyester Tape, with a Tinned Copper Drain Wire 0.5mm2 (7/0.3mm) (OS)
Bedding: Polyvinyl Chloride (PVC) Compound Type ST2
Bedding Colour: Black
Armour: Galvanized Steel Wire Armoured (SWA)
Outer Sheath: Flame Retardancy Polyvinyl Chloride (PVC) Compound Type ST2 FR
Outer Sheath Colour: Black or Blue

ELECTRICAL CHARACTERISTICS

Operating voltage, U0/U: 300/500V
Operating temperature: -15°C to +90°C
Final short circuit temperature: 250°C
Test Voltage: 2kV for 1 minutes

REFERENCE STANDARDS

Design Specification: BS EN50288-7
Conductor: IEC60228, BS EN60228
Flame Retardancy: IEC60332-3

INSTALLATION REFERENCE

Minimum bending radius (mm): 10 x cable overall diameter
Maximum pulling tension: 70N/mm²
