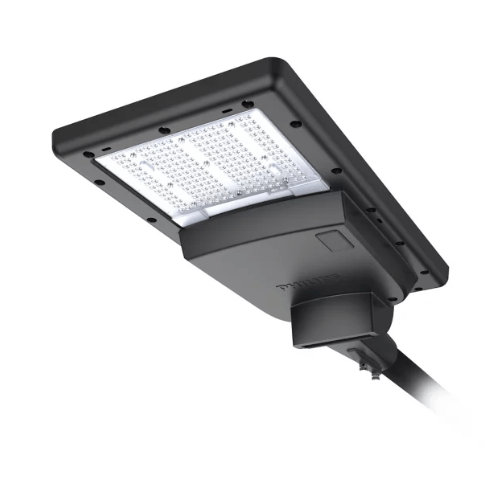

Philips SunStay BRP710 LED30 CW MR HY SOLAR

Philips SunStay is an integrated solar street light with Lithium Ferro Phosphate battery, solar panel and charger built into the luminaire. Pressure die cast aluminum for sturdiness and long life. Specially designed pole mounting bracket allows different tilt angles, lateral and pole top mounting.

Benefits of Solar Street Lights

Renewable

Solar energy is free and available everywhere on the planet

Energy Efficient

Decrease energy consumption and save on energy costs

Low Maintenance

Up to 10,000 hours lifetime for LED lights, and 25,000 years lifetime for PV panel

Additional information

Driver Included

Yes

Luminous Flux

3,000 lm

Luminous Efficacy

175 lm/W

Correlated Color Temperature (Nom)

5700 K

Color rendering index (CRI)

>70

Optical cover type

UV stabilized Polycarbonate cover

Input Voltage

240V

Line Frequency

50 Hz

Battery Type

Lithium Ferro Phosphate

Battery Ampere Hour

20 Ah

Battery Voltage

12.8 V

Battery Charging & Dicharging Cycles

2000

Panel Type

Mono Crystalline

Panel Voltage

17 Vmp, 21 Voc V

Panel Peak Wattage

35 W

Charge Controller Type

MPPT

Charge Controller Wattage

17 W

Cable Connection Kit

Included

Cable

Cable 0.8m, 2-core, 1.5mm2

Ambient Temperature Range

0 to 35+°C

Configurability

Factory Confirgurable

Dimmable

Yes

Housing Colour

RAL 7011

Overall Length

684 mm

Overall Width

369 mm

Overall Height

156 mm

Dimensions

156 x 369 x 684 mm

Material

Pressure Die Cast Aluminium

Ingress Protection Code

IP65 ( Dust penetration protected, jet proof)

Mech. Impact Protection Code

IK08 (5 J vandal-protected)

Surge Protection (Common/Differential)

Surge protection level until 4kV

CE Mark

CE Mark

Warranty Period

3 Years

EU RoHS Compliant

Yes

Median Useful Life L70B50

50,000 Hours

Ambient Temperature Range for Charging

0°C to 45°C

Ambient Temperature Range for Discharging (when light is on)

-20°C to +35°C

Solar Dimming Profile

100% Dusk to Dawn

Grid Connection Type

Hyrid

Battery Location

Inside Luminaire

Order Product Name

BRP710 LED30 CW MR HY SOLAR

Full Product Name

BRP710 LED30 CW MR HY SOLAR

Full Product Code

871951450187400

Order Code

919515813981

Material Nr. (12NC)

919515813981

Numerator - Quantity Per Pack

1

Net Weight (Piece)

12.000 kg

EAN/UPC - Product/Case

8719514501874

Numerator - Packs per outer box

1

EAN/UPC - Case

8719514501874

Download brochure
