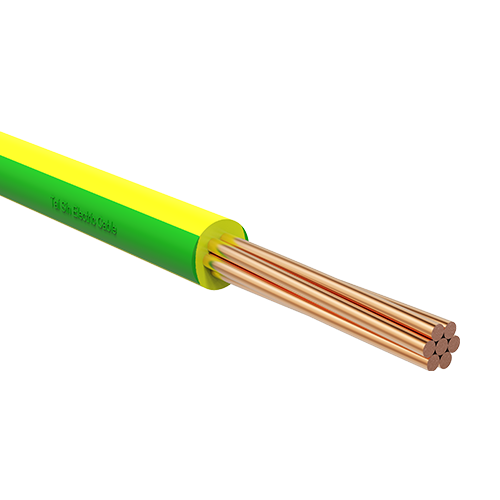

PVC, CU / PVC – Single Core

PVC Insulated, Non-Sheathed
450/750V Cable
Compliant With SS358-3 / BS EN50525-2-31 / IEC60227-3

CONSTRUCTION
Conductor: Plain annealed copper, Class 2 stranded circular or compacted
Insulation: Polyvinyl Chloride (PVC) Compound Type PVC/C
Insulation colour: Black, Green/Yellow, Blue, White, Brown, Grey or Others

ELECTRICAL CHARACTERISTICS
Operating voltage, U0/U: 450/750V
Operating temperature: -15?C to +70?C
Final short circuit temperature: 160?C (for cables ? 300mm_), 140?C (for cables > 300mm_)
Test Voltage: 2.5kV for 5 minutes

REFERENCE STANDARDS
Design Specification: SS358-3, BS EN50525-2-31, IEC60227-3
Conductor: IEC60228, BS EN60228
Flame retardancy: IEC60332-1, BS EN60332-1

INSTALLATION REFERENCE
Minimum bending radius (mm): 6 x cable overall diameter
Maximum pulling tension: 50N/mm_
