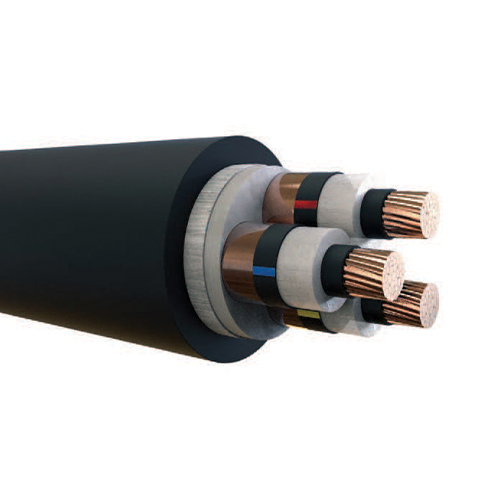

XCTP, CU / XLPE / CTS / PVC – 3 Core

XLPE Insulated, Copper Tape Screen, PVC Sheathed Cable
6.6kV To 33kV
IEC 60502-2

Conductor: Plain Annealed Copper, Class 2 Conductor
Conductor Screen: Extruded Semi Conductive Compound
Insulation: Cross-linked Polyethylene (XLPE) Compound
Insulation Screen: Extruded Semi Conductive Compound
Metallic Screen: Copper Tape Screen
Assembled Core: PP Yarn Filler with Binder Tape
Outer Sheath: Polyvinyl Chloride (PVC) Compound Type ST2 (LSZH upon request)
Outer Sheath Colour: Black

Operating voltage, U0 / U: 3.8/6.6kV, 6.35/11kV, 8.7/15kV, 12.7/22kV, 19/33kV
Conductor Operating temperature: 90°C
Final short circuit temperature: 250°C
Test Voltage: 3.5U0
