3M Scotchcast 92-NBA Cable Jointing Kits

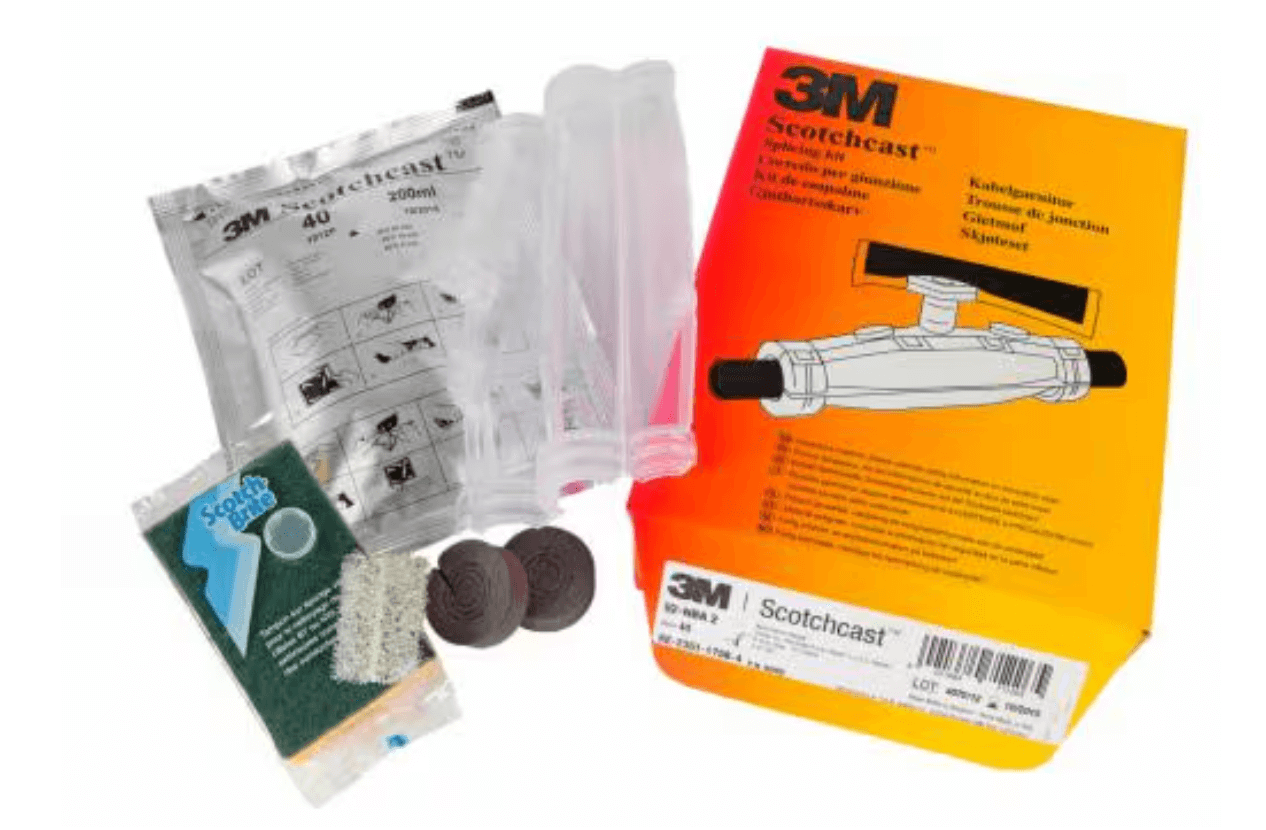

3M™ Scotchcast™ Resin kit 92-NBA is a premium electrical splice, suitable up to 1 kV application. It contains the high-performance, two-part polyurethane-based 3M™ Scotchcast™ Resin 40 designed for general purpose electrical insulation, moisture sealing and mechanical protection. The innovative 3M closed mix & pouring system ensures quick and clean delivery of the resin into the transparent mould body design.

3M™ Scotchcast™ Resin kit 92-NBA is a premium electrical splice, suitable up to 1 kV application. It contains the high-performance, two-part polyurethane-based 3M™ Scotchcast™ Resin 40 designed for general purpose electrical insulation, moisture sealing and mechanical protection. The innovative 3M closed mix & pouring system ensures quick and clean delivery of the resin into the transparent mould body design.

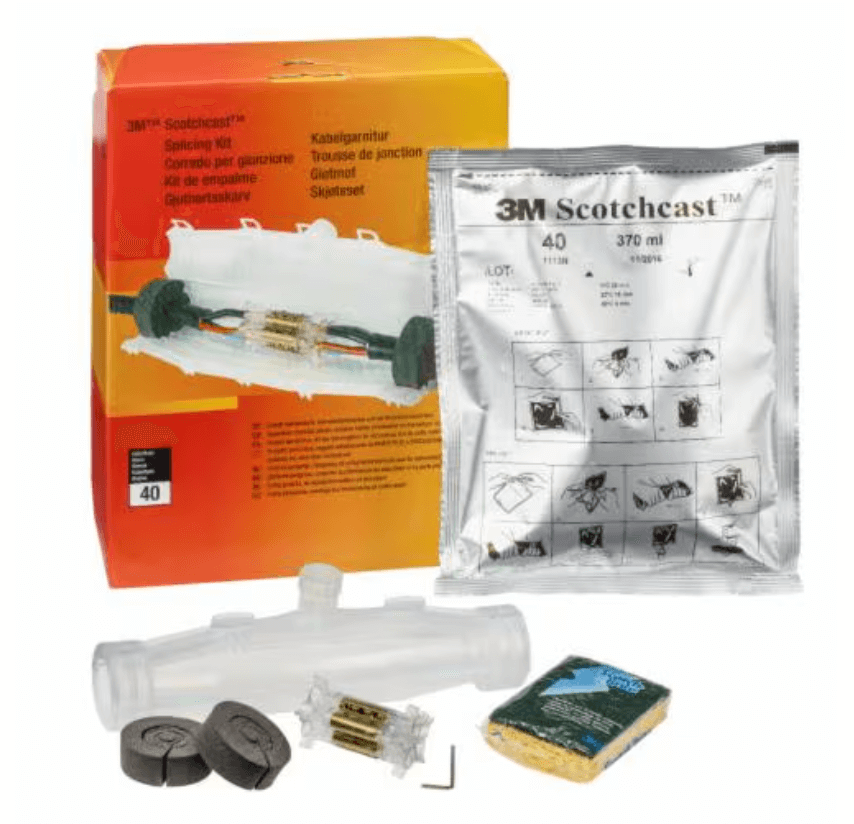

3M™ Scotchcast™ Premium Resin Cable Joint Kit series 92-NBA line is suitable for in-line application up to 1kV covering cable cross section range from 1.5 mm2 to 240 mm2. The series 92-NBA design allows for fast and clean installation thanks to the new 3M patented spout integrated in the resin bags and the kit shell. Correct cable setting is secured by the included phase spacer and the complete transparency of the kit shell. 3M™ Scotchcast™ 40 hydrophobic polyurethane resin meets CENELEC HD631.1 S2 requirements and is compliant with EU directive 2011/65/EU (RoHS) and EU directive 1907/2007/EC (REACH), guaranteeing the highest grade of electrical insulation for professional application.

Highlights

  • All products in this range utilise the “Express” one-part mould body
  • Provides time and cost savings through extra-fast setup
  • Hydrophobic polyurethane resin
  • Fast and clean installation thanks to the integrated spout
  • Full transparent body shell to secure correct cable setting during installation
  • Guarantees the highest grade of electrical insulation for professional application
  • RoHS and REACH compliant

Additional information

Branch Shape

Inline, T-branch

Cable Type

polymeric insulated cable

Conductor Amount

Multiple

Flame Retardant

No

Halogen Free

No

Maximum Conductor Size

120mm2, 240 mm2, 50 mm2, 95mm2

Maximum Cores per Branch

5

Max. Insulation OD

36 mm, 45 mm, 54 mm, 64 mm

Maximum Main Diameter

45 mm, 54 mm, 64 mm

Minimum Conductor Size

120 mm2, 50 mm2, 70 mm2

Min. Insulation OD

18 mm, 19 mm, 27 mm, 29 mm

Minimum Main Diameter

19 mm, 27 mm, 29 mm

Mining Sector Approval

No

Model

Cast Resin

Number of Conductors

5

Resin Type

SC 40

Shelf Life

36 Month

Splice Type

T-branch

Voltage

1kV

Voltage Rating

0.6/1 kV

With Screw Connectors

No
