Overview
High-performance 3″ core label printing the way you never thought possible. Get 40-second part changeovers with no adjustments, no trial-and-error print tests and no wasted labels. LabelSense™ Technology allows the printer, Brady i75-Series materials and Brady software to communicate; automating and eliminating tedious adjustments and label-wasting tasks
- High volume, zero waste — No more wasted time on calibration or trial and error. You’ll always print on the very first label
- 40-second changeovers — Change materials in just 40 seconds with faster ribbon removal and intuitive loading.
- More intuitive. Less intimidating — The 7″ touchscreen guides you through the printing process, eliminating confusion and the need to grab an expert.
- 3″ core – revolutionized — Smart technology and automated features equipped for 3″ core printing.
Zero waste. Zero hassle. Zero expertise required.
- No need to set print speed, heat, offsets, sensor mode or sensor location — i7500 does it automatically without wasteful trial-and-error print tests
- No need to calibrate wasted blank labels — i7500 detects the part size and spacing, and prints on the very first label
- i75-Series ribbons auto-center with the ink always facing the correct way; the i7500 will warn you if the ink type is a mismatch with the installed label material
- Over 4,000 stock i75-Series label parts and ribbons in 80+ materials operate in full smart-mode functionality
- Manual 3″ core label rolls and 1″ core ribbons will also function in full manual mode where the operator makes necessary adjustments for print settings, sensor adjustments, label calibration and correct ribbon pairing
- Brady WorkStation software (included) auto-detects the installed part for driverless one-click setup and label file creation; or use Win driver if using non-Brady software
- Standard configuration ships with a Tear Bar; optional Auto Cutter accessories can be easily user-installed with four fastening screws
Endless Label Printing Possibilities
The i7500 prints labels for too many applications to list – here are just a few to highlight:

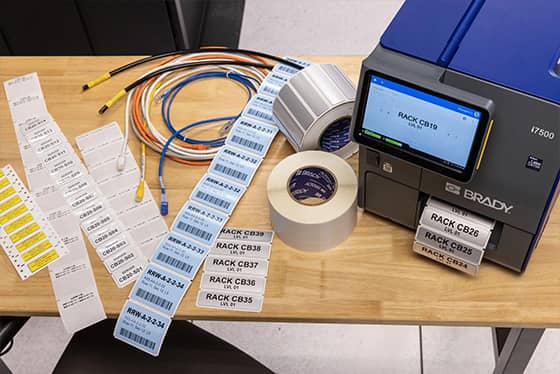

DataCom
- Data and electrical cable markers, flags and self-laminating labels in a wide range of sizes and widths
- Colored high-gloss labels for rack, shelf, equipment and infrastructure identification
- Support large build-outs and modernization projects with durable labels designed for data centers

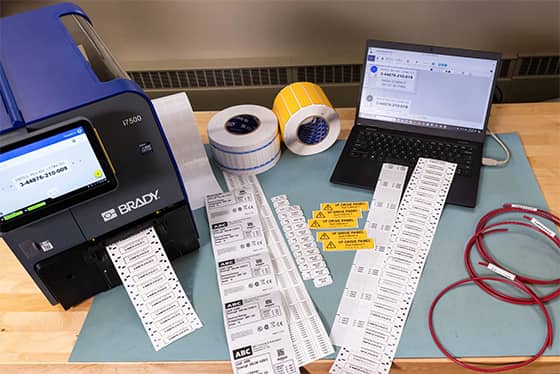

Wire ID
- Wraps, heat shrink sleeves, tags, flags, self-laminating and zip tie cable markers
- Inside and outside of panel markers for rating plate, component and backer board identification
- 500+ marker options suitable for everything from small wires to entire cable harnesses

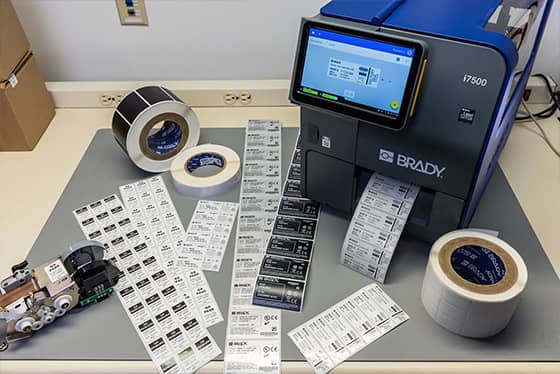

Product ID
- Create labels for rating plates, WIP tracking, product instructions and serial numbers
- Use 1-click label setup to easily print warranty labels, QA inspection labels, factory seals and part marking
- 400+ label options designed to ensure efficiency, accuracy and durability for industrial product identification

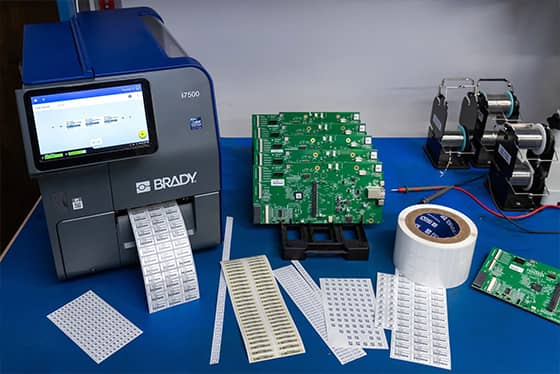

Electronics
- High-performance, heat-resistant label options to resist fluxes, solvents and extreme temperatures in circuit board manufacturing
- Precision printing on labels as small as 0.125″ with small fonts and barcodes
- Multiple ESD label materials for labeling boards pre- and post-process, packaging and electronically sensitive equipment
