SmartBright Dual Select Direct-lit panel 120lm/W, multicolor temperature
Sale!

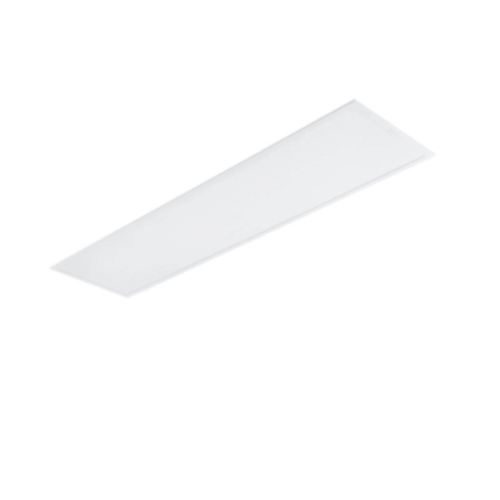

Philips SmartBright Dual Select Direct-Lit Panel | RC170B LED31_37_41 SCCT PSU W30 L120 GM
Original price was: $43.10.$34.70Current price is: $34.70.
The new Philips SmartBright Direct-lit Panel offers an excellent value, tri-colour/Lumen lighting solution. Available in three sizes to suit a wide variety of standard applications, the new range is light, reliable and easy to install. The panel’s brand new direct-lit design creates a brighter and healthier office environment rendering true and vibrant colours.
Additional information
| Order Product Name (W30 L1200) | RC170B LED31_37_41/SCCT PSU W30 L120 |
|---|---|
| Full Product Code (W30 L120) | 872016976855099 |
| Order Code (W30 L120) | 911401851387 |
| Driver included | Yes |
| Light source engine type | LED |
| Value Ladder | Value |
| Warranty Period | 3 Years |
| Luminous Flux | 3,100 / 3,700 / 4,100 lm |
| Correlated Color Temperature | Selectable |
| Luminous Efficacy (rated) (Nom) | 120 lm/W |
| Color Rendering Index (CRI) | >80 |
| Beam angle of light sourrce | 120 degrees |
| Light source color | Multi color temperature |
| Optic Type | Beam angle 120 degrees |
| Luminaire light beam spread | 120 degrees |
| Unified glare rating CEN | 23 |
| Effective projected area | 0.354m² |
| Input voltage | 200 to 240 V |
| Line Frequency | 50 or 60 Hz |
| Inrush current | 30 A |
| Reflector Material | Steel |
| Optic Material | Polymethyl methacrylate |
| Optical cover material | Polystyrene |
| Housing color | White RAL 9003 |
| Mounting Devicec | – |
| Optical cover finish | Opal |
| Overall length | 1195 mm |
| Overall width | 295 mm |
| Overall Height | 59mm |
| Dimensions | 59 x 295 x 1195 mm |
| Ingress Protection Code | IPO [Finger-protected] |
| Mech. Impact protection code | IK02 [0.2 J standard] |
| Optical cover type | PS |
| Net Weight | 1,400kg |
| Glow-wire test | Temperature 650 degrees C duration 30 s |
| Flammability mark | For mounting on normally flammable surfaces |
| CE Mark | No |
| ENEC Mark | – |
| Photobiological Risk | Photobiological risk group 0 @ 200mm to EN62471 |
| Photobiological risk specification | 0.2, |
| EU RoHS compliant | Yes |
| Performance ambient temperature Tq | 25 degree Celsius |
| Ambient Temperature range | -10 to +45 degrees Celcius |
| Luminous Flux tolerance | -10%, +15% |
| Initial chromacity | (0.38, 0.38) SDCM <5 |
| EAN / UPC - Product/Case | 8720169768550 |
