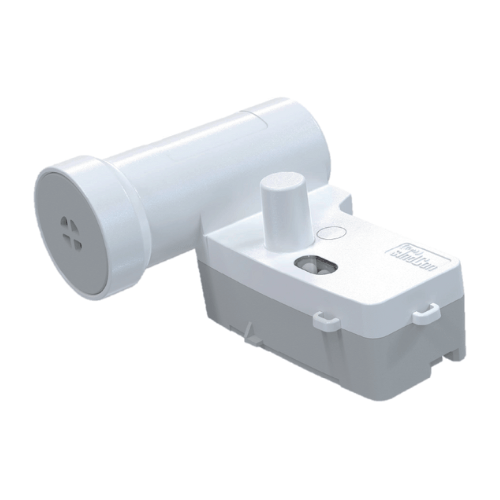

Sindcon Magnotech Non-Mag Sensor

Sindcon’s Magnotech Non-Mag Sensor for IOT Smart metering is a Smart Retrofit device, compatible with Itron Water Meters.  By attaching the device to an existing Itron Water Meter, it is converted into a smart water meter, accurately reporting data to a remote dashboard. Combining Sindcon’s expertise in single-chip solutions with LC sensor interface and LoRa communication technology, the design is equipped with Cyble target.

  • ER26500 Lithium-thionyl Chloride Battery (Li-SoCL2)
  • Waterproof shell design has IP68 dustproof and waterproof
  • Sindcon Advanced Battery Management Technology precisely monitors state-of-charge for primary battery with resolution up to 0.2mAHfor ER26500
  • Infrared Communication
  • Additional lead sealing design for extra safety
  • LoRa SoC (STMM32WLE5CCU6) Integrating ARM Cortex M4-Core, Semtech’s LoRa transceiver and Sindcon’s LC sensing technology optimised for water/gas meter pre-equipped with LC sensor target with temperature compensation and drift compensation
  • Anti-dismantling alarm function when retrofit device is removed from water/gas meter
  • Sincon’s unique temperature and drift compensation algorithm is used for the LC sensor
  • Anti-tampering function triggers automatically and sends alarm to system when sensor is away from Cyble target of meter
  • The SoC integrating ARM Cortex-M4 core is capable to realise complex algorithms and functions to meet the needs of different Internet of Things (IOT) applications.
  • The System on Chip (SoC) integrates both LC sensor and LoRa communication technology into a single chip
Sindcon SOC Chip

Long Range Communication

Long Range Wide Area Network (LoRaWAN) technology enables wireless transmission range of up to 15km in open environments.

  • Supports multi-protocol Modbus, DLMS, EDMI proprietary protocol.
  • Over the air firmware upgrade can be downlinked to devices via Sindcon LoRaWAN server
  • Local data logging is available and local storage can be accessed by mobile to PC via bluetooth communication
  • Power supply lost caused by power trips can be detected and sent alert to system
  • Mobile app setting supported by Sindcon Mobile App
  • Can transmit up to 50 registers or equivalent 400 bytes of register data

This product is a key component in a comprehensive facility monitoring and/or energy management system.
