In electrical work, every wire tape colour carries meaning.
Colours in an electrical tape help identify different phases and voltage levels in wiring, especially when multiple wires run through the same conduit.
Without clear colour labelling, wires can be difficult or impossible to distinguish. Using the correct tape colour ensures technicians know what they’re working with, prevents hazardous surprises on the job, and reduces safety risks.
But what does each colour actually mean? In this article, we’ll identify common wire tape colours and when to use them so you can stay safe and compliant on your next project.
Why Colour Coding Wire Tape Is Important
It’s common in electrical installations to find several wires bundled together in a single conduit.
Without proper identification, telling them apart can quickly become a guessing game. Which wire carries current? Which one is neutral? Which connects to what?
It helps electricians instantly recognise whether a wire is live, neutral, or connected to ground, and in multi-phase systems, which phase it belongs to.
In larger systems, especially in commercial or industrial settings, wires may carry power on different “phases.”
Colour-coded wire tape helps identify each phase clearly, ensuring the wires are connected in the correct sequence for safe and reliable operation. They reduce wiring errors, speed up troubleshooting, and create a safer environment for everyone working on the system.
If the colours aren’t accurate, the next person handling the wires might misinterpret them, putting safety at risk.
Common Wire Tape Colours & Their Uses

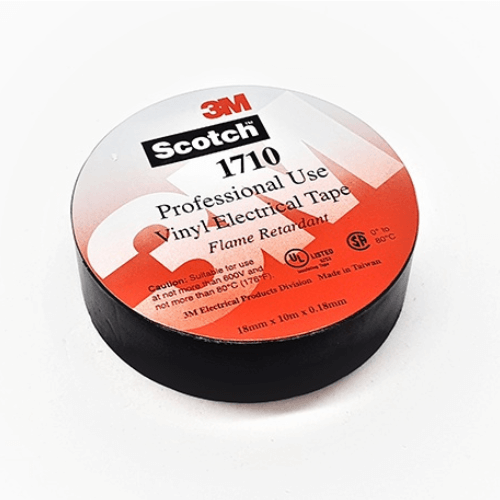

Black Electrical Tape
Black electrical tape is the most commonly used colour for general insulation purposes. It’s often applied to indicate Phase A for U.S. usage and Phase B for international usage, in three-phase electrical systems. Its versatility makes it a go-to choice for both residential and commercial wiring jobs.

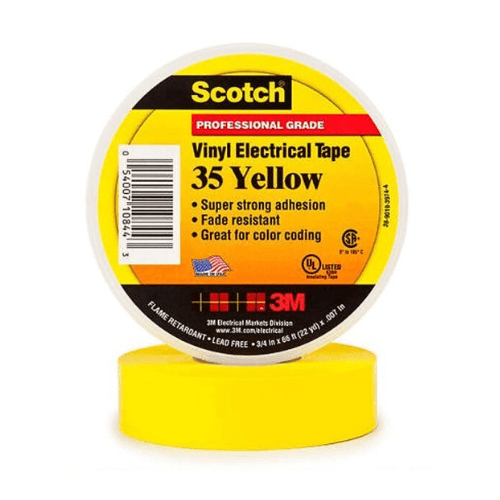

Yellow Wire Tape
Yellow wire tape is typically used to mark Phase C for U.S. usage and as a sheath, 110 V Wiring for international usage, in three-phase electrical systems. It’s also commonly applied to warning circuits or control lines, helping electricians quickly identify specific functions within complex setups.

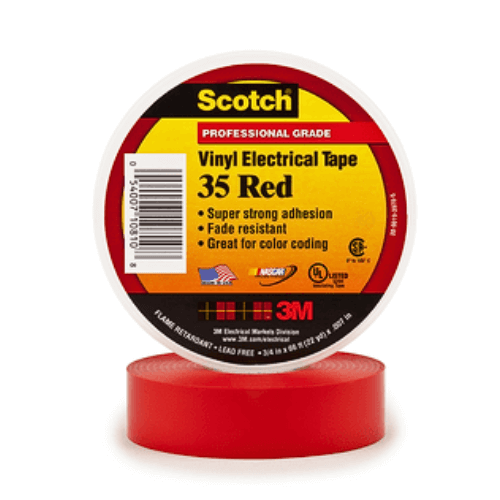

Red Tape
Red wire tape is typically used to mark Phase B for U.S. usage and as a sheath, 3-phase 415 V for international usage, in three-phase electrical systems.
The bold red colour stands out clearly, making it easy to identify in busy or complex setups, especially during installation, troubleshooting, or routine maintenance.
Other Electrical Tape Colours
| Wire Tape Colour | U.S. Usage | International Usage |
|---|---|---|
| Brown | High Voltage, Phase A | Low Voltage, Phase A |
| Orange | High Voltage, Phase B | Sheath, Garden Tools |
| Green | Earth | Earth |
| White | Low Voltage, Neutral | – |
| Blue | Low Voltage – Phase C | Low Voltage, Neutral Sheath, 230 V |
Alternative Uses for Coloured Electrical Tapes Beyond Wiring
While coloured electrical tape is primarily used for identifying wires and electrical phases, its versatility makes it useful well beyond wiring applications.
Electrical tape in different colours can also help with temporary labels and categorisation.
Use it to label cables, tools, or containers by function, mark measurements on ropes, poles, or rulers for fast visual reference, and colour code keys by wrapping a small strip around the head for easy sorting.
Coloured wire tape also enhances safety by improving visibility.
It improves visibility by marking potential trip hazards like exposed wires, steps, or uneven flooring. It can also be used to draw attention to emergency items or high-priority tools, such as flashlight handles, toolboxes, and first aid kits, making them easier to locate in urgent situations.
Choosing the Right 3M Electrical Tape for Wire Marking
When it comes to marking wires with colour-coded tape, the type of electrical tape you choose affects not just appearance, but also performance and safety. Consider the tape’s quality, ease of use, and compliance.
For most wire identification tasks, 3M Colour-Coding Tape 35 is the go-to option. This premium PVC vinyl tape is available in a variety of bright, fade-resistant colours that stay visible even in demanding environments.
It’s durable, flexible, and adheres well to a variety of surfaces, making it ideal for marking phases, circuits, or control lines.
It offers consistent performance for lighter applications.
For more demanding tasks, such as splicing or termination applications, consider a specialised solution like
3M Scotch Rubber Splicing Tape 23. Designed for excellent stretch, insulation, and environmental resistance, it’s ideal when protection (not colour) is the priority.
In electrical work, clarity matters. Choosing the right tape helps ensure your wire markings stay accurate, visible, and safe, so the next person working on the system knows exactly what they’re dealing with.
Best Practices for Using Wire Tape Colours
When using wire tape colours, it’s essential to wrap them properly for both insulation and identification purposes.
Ensure the wire is clean and dry before applying the tape, and overlap each layer firmly so that the colour is clearly visible.
Always choose a tape that matches the voltage and environmental conditions of the job. Some tapes are made to handle higher heat, moisture, or outdoor use.
Finally, replace any tape that’s faded, brittle, or peeling. Clear and accurate colours help prevent mistakes and make future maintenance easier and safer.
Safety Standards & Certifications
When choosing electrical tape, it’s important to look for safety standards like UL or CSA ratings. These certifications indicate that the tape has been tested for reliable performance under specific conditions.
For example, 3M Colour-Coded Vinyl Electrical Tape 35 is UL Listed and CSA Certified, meeting key safety requirements.
It’s also important to ensure the tape is flame-retardant, UV-resistant, and capable of withstanding high temperatures, especially in demanding or outdoor environments.
Choosing certified, well-tested tape supports a safer and more durable installation.
Because Safety Starts with Clarity
Wire colour coding is more than a best practice; it’s a requirement. Following standard codes with the right electrical tape not only protects today’s work but also makes future maintenance faster and safer. Clarity matters. The next technician should never have to guess.
