The 3M Scotchcast 92-NBA – Low Voltage Resin Cable Joint Kit is a premium inline splice solution designed for non-armoured, polymeric, low-voltage energy cables up to 1 kV. It’s engineered for easy, safe installation and robust performance across indoor, outdoor, underground, and underwater applications.
Key Highlights of 3M Scotchcast 92-NBA
– Low Voltage Cable Joint Kit
- Express one-part mould body – used across the entire product range.
- Time and cost savings – achieved through extra-fast setup.
- Hydrophobic polyurethane resin – ensures durability and reliability.
- Fast and clean installation – enabled by the integrated spout.
- Transparent body shell – secures correct cable positioning during installation.
- Highest-grade electrical insulation – guarantees professional-level application.
- RoHS and REACH compliant – meets environmental and safety standards.
Why Choose 3M Scotchcast Resin Cable Joint Kit 92-NBA?
The 3M Scotchcast 92-NBA Series delivers high-performance jointing with professional-grade insulation, mechanical security, and environmental durability. With streamlined installation, transparent shells, and a wide cable size range, it’s tailored for efficiency and reliability in diverse working conditions.
- Electrical insulation and mechanical protection of cable joints using compression or mechanical connectors.
-
Versatile applications: suitable for indoor, outdoor, underground, and submerged installations.
-
User-friendly design: fast, clean installation with minimal mess.
-
Durability: moisture-resistant, supporting -40 °C to +110 °C continuous operation.
-
Environmentally safe: free from CMR, isocyanates, halogen, and SVHC substance
Technical Overview
Configuration & Performance
- Designed for 1-core up to 5-core, non-shielded LV cables rated at 0.6/1 (1.2) kV.
- All variants passed Type Test according to EN 50393 Table 3: Type I Joint, Sequence A1.
Installation Features
- Transparent mould shell allows installers to ensure correct spacing and positioning before pouring resin.
- Includes a web spacer for 4-core configurations (NBA 1 to NBA 4 sizes) to maintain separator distances.
- Furnished with pre-cut foam seals, an abrasive sponge for prepping cable jackets, and a closure cap to maintain hygiene.
Selection Guide

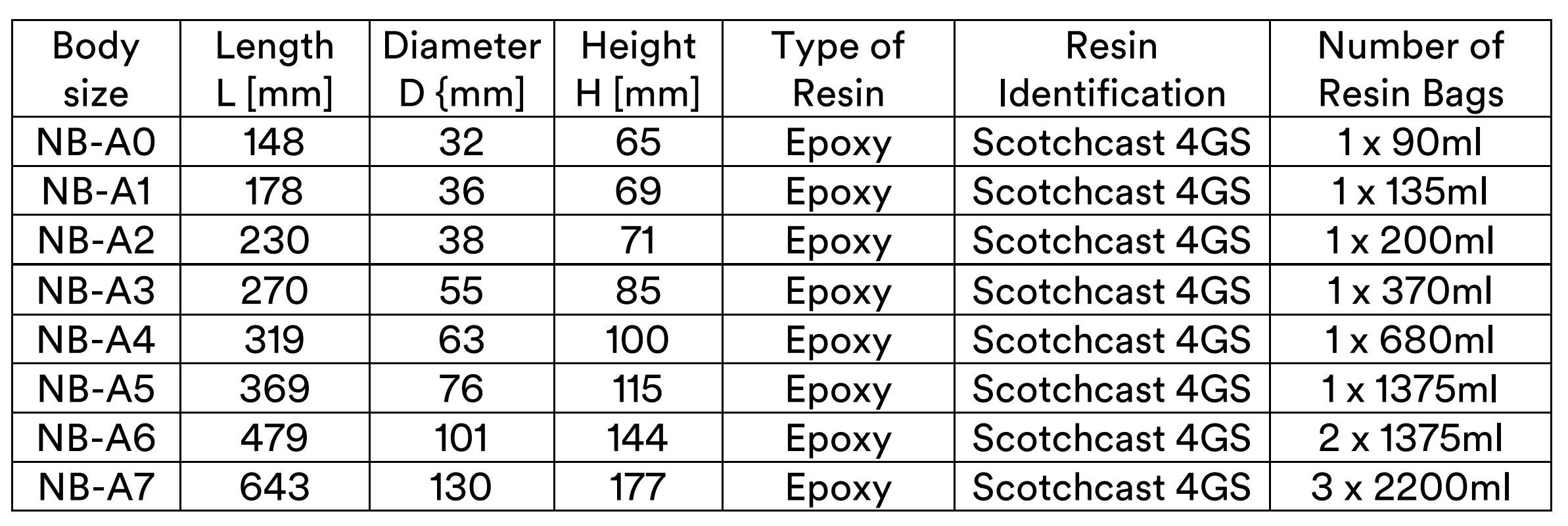

Dimensions and Resin Volumes

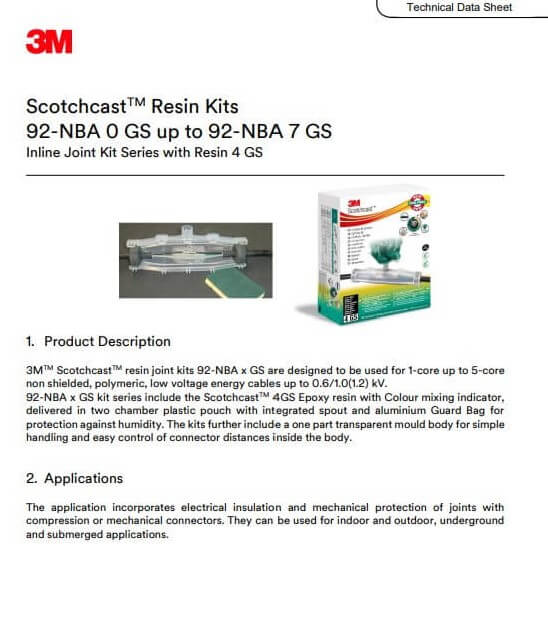

Download Technical Data Sheet
