Panduit VeriSafe 2.0 – Absence of Voltage Tester

By February 27, 2023March 9th, 2023No Comments

Simplify Absence of Voltage Testing

The Safe Way To Protect Employees and Equipment
Indications

An Absence of Voltage Tester (AVT) is a permanently-mounted tester used to verify that a circuit is de-energized prior to opening an electrical enclosure.

The VeriSafe 2.0 AVT simplifies the voltage testing process. With the push of a button, workers can quickly determine voltage status and see an active indication when the absence of voltage is confirmed. This provides a new and innovative way to safely, reliably, and efficiently test for the absence of voltage with exposure to electrical hazards.

The 2.0 AVT uses new technology for the connectivity test and voltage threshold measurement with the following enhanced set of features:

  • Indicator module with battery-free option
  • Fail-safe design with active indications
  • Safety functions SIL 3 (IEC 61508-1)
  • Redundant channels for measurement and detection
  • 2.0 Isolation module with Network connection for Real-Time Diagnostics and Performance Reporting
  • Voltage Detection Range Up to 1000 V AC (50/60Hz), 1000 V DC; Rated tolerance +10%
  • Hazardous Locations comply to Class I Div 2 and Atex approval

Features and Benefits

Improved Safety
Increased Productivity
Simplified Process
Flexible
Reliable Results

Improved Safety and Risk Reduction

• No exposure to electrical hazards while testing
• Reduces human factors

Increased Productivity

• Results within 10 seconds of button push
• Troubleshoot abnormal power conditions
• Utilize network module for remote monitoring

Simplified Process for Easier Compliance

• Satisfies criteria in NFPA 70E 120.5(7) Exception 1 & CSA Z462 4.2.5 (g) Exception 2
• UL 1436 Listed AVT

Flexible Applications

• Power distribution, motor control, & automation
• Data centers, industrial, & commercial facilities
• Suitable for indoor, outdoor use

Reliable Results

• Fail-safe design with active indications
• Safety functions SIL 3 (IEC 61508-1)
• Redundant channels for measurement and detection

Comparison of Test Methods

Safer. Smarter. More Efficient.

VeriSafe AVTs meet NFPA 70E and CSA Z462* best practice for testing absence of voltage. This will enable your facility to operate safer, smarter, and more efficiently.

Quick Test with VeriSafe™ 2.0 AVT

Manual Process vs Automatic Process

NFPA 70E and CSA Z462* allow portable testers or absence of voltage testers to be used when verifying an electrically safe work condition.

*NFPA 70E 120.5(7) Exception 1 and CSA Z462 4.2.5 (g) Exception 2
Internal Process

Flexible Applications

Deploy VeriSafe AVTs Everywhere

Whether you have an industrial site, commercial facility, utility, or data center, we’ve got you covered.

  • Suitable for indoor, outdoor use
  • Power distribution, motor control, and automation

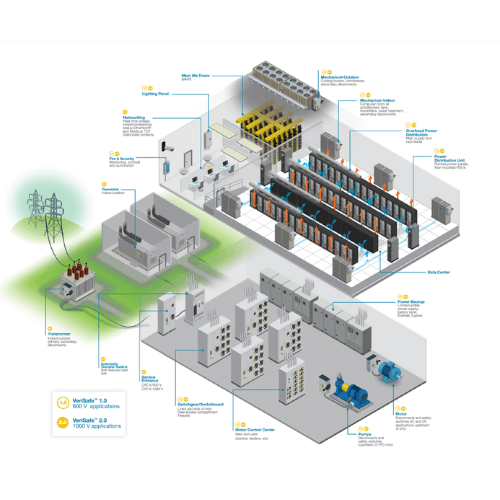

Data Centre Application

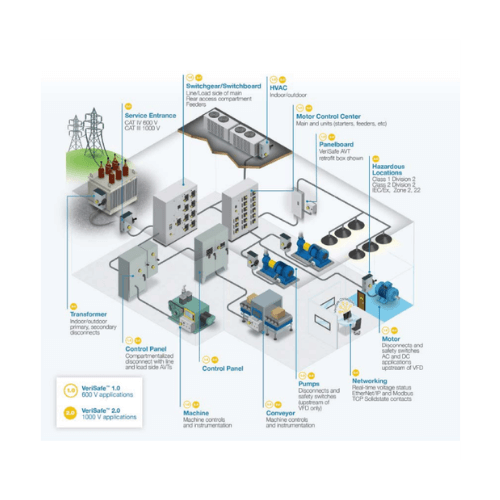

Industrial Application

Technical Specifications

Technical Specs_1
Technical Specs_2
