Electricity is powerful but can be dangerous if not handled properly. In industrial settings, where heavy machinery and complex systems need a lot of power, the risk of electrical hazards is even higher.
That’s why proper insulation is essential. It promotes safety and helps prevent electrical shocks, short circuits, and equipment damage. Good insulation also extends the life of your wiring and keeps your setup running smoothly.
For any electrical job, big or small, selecting the right electrical tape is crucial to ensure safety and long-lasting protection.
3M has long been a trusted name in electrical safety products, known for innovation, durability, and high performance.
Their range of electrical insulation tape choices is designed to meet diverse needs, offering superior insulation and protection in various conditions.
In this blog, we’ll explore the top 3M electrical tape options that stand out for their reliability, versatility, and safety features, helping you make an informed choice for your next project.
Why Choosing the Right Electrical Tape Matters
The right tape prevents future failures, cuts down on rework, and helps maintain a safe, long-lasting setup.
Choosing the right electrical tape goes beyond simple adhesion. Key factors like insulation class dictate the voltage the tape can safely handle, while temperature resistance is vital for enduring operational heat and environmental fluctuations.
The application type, whether indoor or outdoor, low or high voltage, also heavily influences the necessary properties, demanding tapes with specific UV and moisture resistance for outdoor use, or superior dielectric strength for high-voltage systems.
Opting for quality tapes like 3M’s PVC or rubber splicing tape helps prevent hazards, lasts longer, and meets safety standards, saving you time and money.
Top 3M Electrical Tape Options for Reliable Insulation and Safety

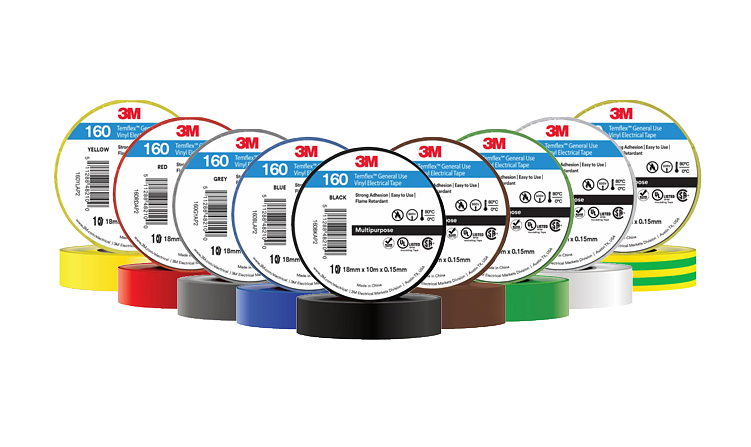

1. 3M Temflex™ General Use Vinyl Electrical Tape 160
3M Temflex™ 160 is an economical PVC electrical tape built for general-purpose indoor use. It offers reliable insulation and protection for low-voltage cables, making it suitable for jacketing, marking, and harnessing in non-critical applications.
With resistance to abrasion, moisture, acids, and solvents, along with flame-retardant properties, this 3M electrical tape is designed to perform under everyday conditions. It handles temperatures from 0 to 80°C and meets key certifications for safety and compliance.

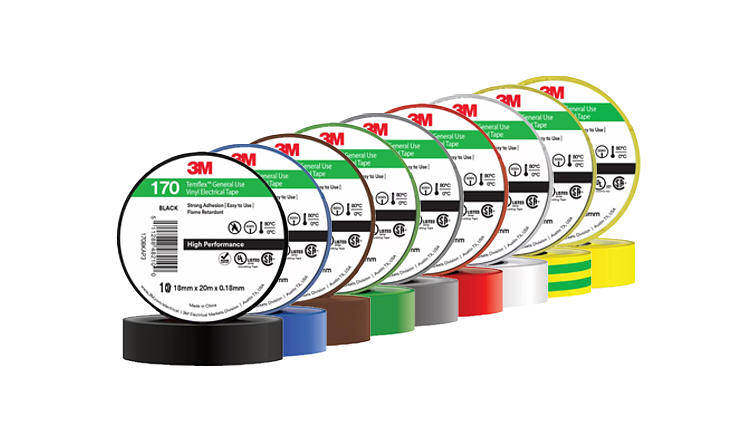

2. 3M™ Temflex™ Tape 170
3M™ Temflex™ Tape 170 is a durable, high-performance electrical vinyl tape designed for more demanding general-purpose applications.
Thicker and stretchier than Temflex 160, this 3M electrical tape offers better adhesion and is ideal for insulating low-voltage cables, bundling wires, and color-coding tasks. It is flame-retardant and suitable for indoor and protected outdoor use.

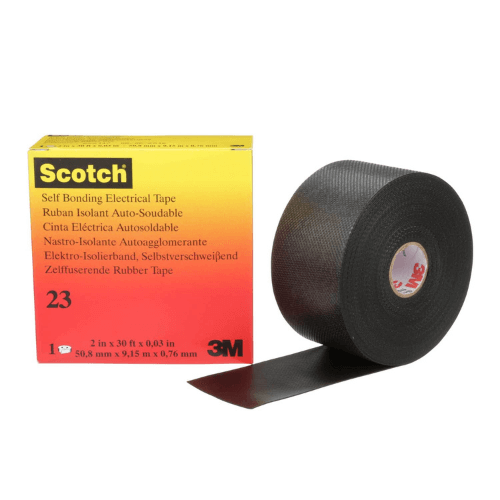

3. 3M Scotch® Rubber Splicing Tape 23
3M Scotch® Rubber Splicing Tape 23 is a premium-grade rubber tape designed for reliable insulation of cable splices and terminations. Made with self-fusing ethylene propylene rubber (EPR) and backed by a special polyester liner, this 3M electrical tape is easy to unwind and applies smoothly.
Tape 23 is ideal for use on solid dielectric cables and withstands demanding conditions while maintaining strong adhesion. It’s halogen-free, RoHS compliant, and meets ASTM D4388 standards.

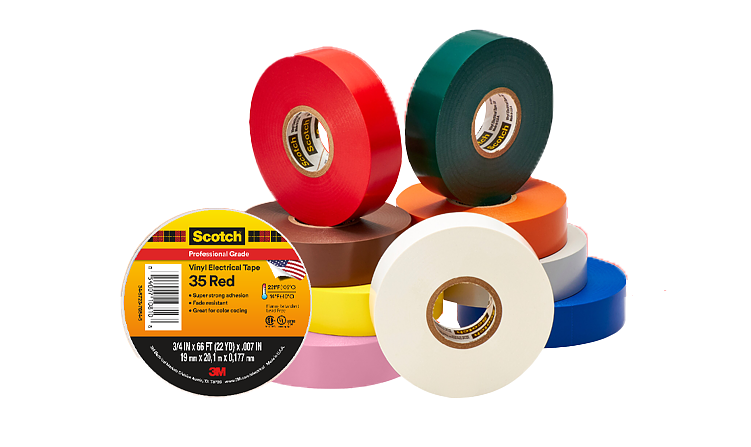

4. 3M Scotch® Vinyl Color Coding Electrical Tape 35
3M Scotch® Vinyl Electrical Tape 35 is a premium 7-mil vinyl tape designed for color coding, phase identification, and marking motor leads or piping. With strong adhesion and resistance to UV, moisture, abrasion, and chemicals, it performs reliably indoors and outdoors—even in tough environments.
Rated for up to 600V and temperatures from 14°F to 221°F, this flame-retardant tape is available in 10 fade-resistant colors like yellow and orange. It meets UL, CSA, and RoHS standards, ideal for professional-grade insulation and marking.

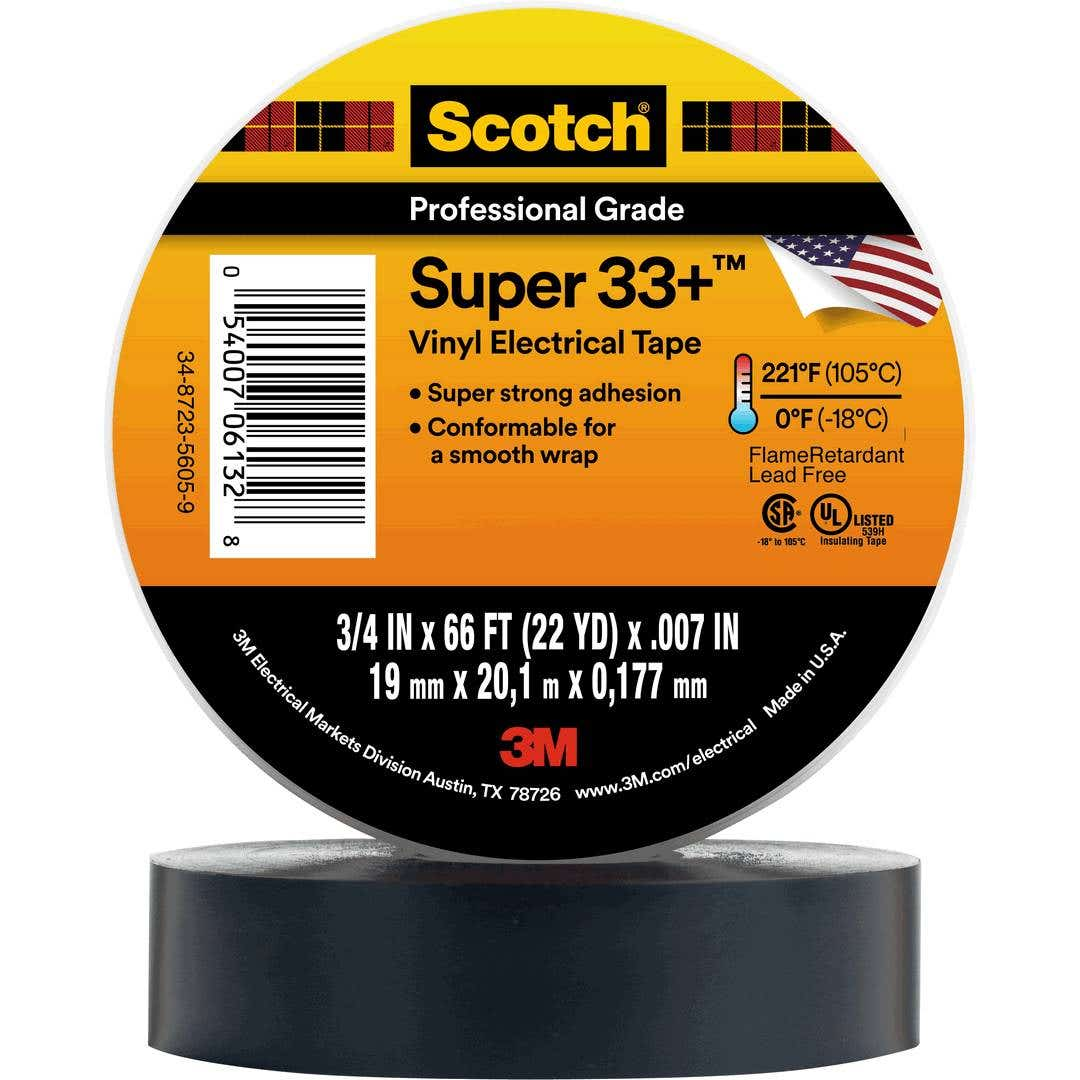

5. 3M Scotch® Super 33+ Vinyl Electrical Tape
3M Scotch® Super 33+ Vinyl Tape is a 7-mil, premium-grade black electrical tape designed for reliable electrical insulation and mechanical protection.
Made of durable PVC with a pressure-sensitive rubber-resin adhesive, Scotch® Super 33+ resists UV rays, moisture, abrasion, solvents, and alkalis. This 3M electrical tape is compatible with solid dielectric and synthetic cable insulations as well as splicing compounds, making it a trusted choice for demanding electrical environments.

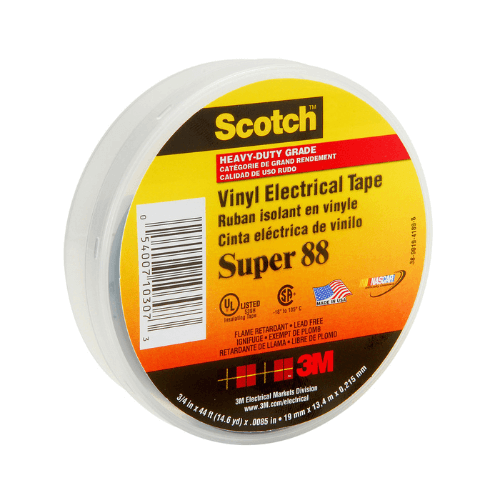

6. 3M Scotch® Vinyl Electrical Tape Super 88
The 3M Super 88 Tape is a thick, heavy-duty vinyl electrical tape built for tough industrial jobs.
At 8.5 mils, it offers superior insulation and protection for cables and splices up to 600V. An all-weather, flame-retardant tape, it performs well indoors and outdoors across a wide temperature range.
Its durable PVC backing and rubber-based adhesive resist UV, moisture, abrasion, and corrosion. Super 88 provides a moisture-tight seal, smooth application, and long-lasting protection against harsh environments.
Choosing the Right Tape for Your Application
With a wide range of 3M electrical tapes available, it’s essential to select the right one based on your project’s requirements.
You must consider factors like tape thickness, temperature range, and application type, as they can greatly affect performance and safety.
| 3M Electrical Tape | Total Tape Thickness without Liner (Metric) |
Temp Range | Best For |
|---|---|---|---|
| Temflex™ 160 | 0.152 mm | 0–80ºC | Everyday conditions, jacketing, marking, and harnessing in non-critical applications |
| Temflex™ 170 | 0.178 mm | 0 to 80ºC | Insulating low-voltage cables, bundling wires, and color-coding tasks |
| Scotch® Tape 23 | 0.76 mm | 0–90ºC | Insulation of cable splices and terminations, and use on solid dielectric cables |
| Scotch® 35 | 0.178 mm | -10–105ºC | Color coding, phase ID, and marking motor leads or piping |
| Super 33+ | 0.178 mm | -18–105ºC | Demanding environments, solid dielectric and synthetic cable insulations |
| Super 88 | 0.216 mm, 0.22 mm | -18–105ºC | Harsh indoor, extreme, and exposed uses |
Rubber tape like Scotch® 23 is best for high-voltage splicing and insulation. Vinyl tape, on the other hand, is great for general insulation, bundling, and color coding. It’s more flexible and easier to handle for everyday tasks.
Make sure to always match the tape’s voltage rating and environmental resistance (heat, UV, moisture) with your application needs to ensure long-lasting performance and safety.
Where to Buy Genuine 3M Electrical Tapes
Always source your electrical tapes from trusted suppliers to ensure product authenticity and performance.
Counterfeit or low-quality alternatives may fail under stress, risking equipment damage or even personal injury.
As an authorized 3M distributor, Lim Kim Hai Electric offers a full range of original 3M electrical tapes for professional use. With us, you’ll get access to certified, compliant products backed by expert support.
Let’s make your next electrical job safer.
Matching the right 3M tape to your application can make a big difference in safety and durability. If you’re not sure which tape you need, we can help. Our team at Lim Kim Hai Electric is ready to advise and support your selection process.
